AC Input Isolated Two Wire Transmitter Model TW8201


CONNECTIONS
Power Supply +
Power Supply -
Input
Input
Shield
(Labeled)
PIN P.S. +
PIN P.S. -
PIN 1
PIN 2
PIN 4
AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument

AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument

Features

AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument Provides DC Current Output Proportional to AC Input
AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument Fully Isolated Input/Output
AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument 100 mV or 100 microamps Minimum Input Span
AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument Unlimited* Choice of Input Ranges
AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument Low-Drift Chopper-Stabilized Input
AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument NEMA-4X Splashproof and Corrosion Resistant
AC,Input,Isolated,Two Wire Transmitter,Model TW8201,Wilkerson Instrument 5 + 5 Year Warranty


Description

The TW8201 provides a DC output current proportional to an AC input signal with an optional display in a traditional hockey puck case.  Isolation is provided in the transmitter.  The transmitter is protected by a gasketed, NEMA-4X glass-filled polyester housing and operates from -40°C (-20°C with display) to +85°C. A optional conformal coating of electronic boards is offered.  The chopper-stabilized input amplifier provides accurate, low-drift operation.  The unit includes filtering and conditioning to reduce susceptibility to transients and noisy operations. The digital display utilizes an auto-zero dual-slope integrating A/D converter for accuracy and stability.

The output ZERO and SPAN controls are accessible through the top of the housing. The optional display ZERO and SPAN controls, the range, the trailing zero and decimal switches are located inside the housing.

Terminations are made to screw terminal connectors on the top of the case.

Typical Applications

Remote AC data acquisition, isolation, AC motor status and control.  ***

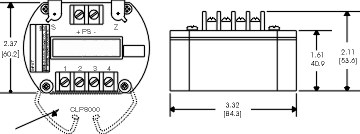

Mounting

Mounting plate accessory MP8000 allows the TW8201 to be mounted on a flat surface or in a 2 3/4 inch wide PVC snap track (TRK48).  Spring retainer clip accessory CLP8000 (factory installed) holds the TW8201 in place inside a Killark HK Series explosion-proof housing (HKB-HFC or HKB-HKGL with lens), or other housing with 3 1/2 inch inside diameter.  DIN rail mounting plate (DMP8000) available for 35mm symmetrical rail.

Specifications

INPUT RANGE
Voltage
  select any range from 0 to 250 Vrms max
    (min span 100 mV)
Current
  select any range from  0 to 5 A rms max***
    (min span 100 micro A, internal shunt)

INPUT FREQUENCY
40 Hz to 1 kHz sine wave

INPUT IMPEDANCE
Voltage
  1 megohm
Current

Input Value
100 micro A
1 mA
10 mA
100 mA
1 A
5 A
Input Shunt
1000 OHM
100 OHM
10 OHM
1 OHM
0.1 OHM
0.01 OHM

OUTPUT RANGE
4/20 mA

MAX LOAD RESISTANCE
=(V supply -12)/1 out mA kilohms

RESPONSE TIME
700 ms typical

ACCURACY
±0.5% of span

LINEARITY
±0.1% of span

COMMON MODE REJECTION
120 dB, DC to 60 Hz

ISOLATION
 Breakdown Voltage
  >600 VAC rms
Resistance
  >500 megohms

OUTPUT RIPPLE
 (peak to peak)
<0.1% of span

OPERATING TEMPERATURE
 -40°F to 185°F
-40°C to  85°C

TEMPERATURE STABILITY
±0.01% of span/°C max

POWER REQUIRED
 12-48 VDC, Polarity protected

SUPPLY VOLTAGE EFFECT
0.01% of span max



* Within specified range limits.
